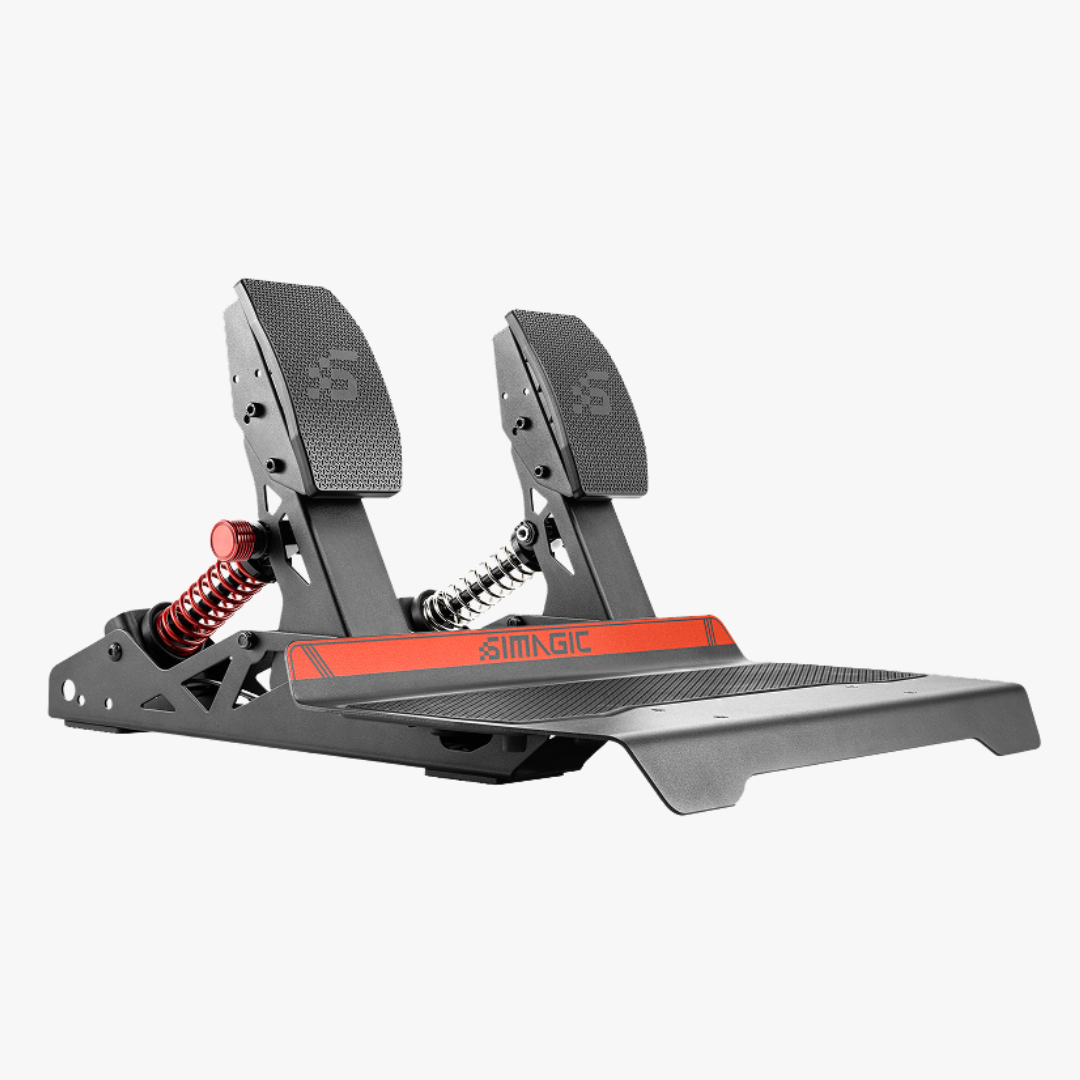

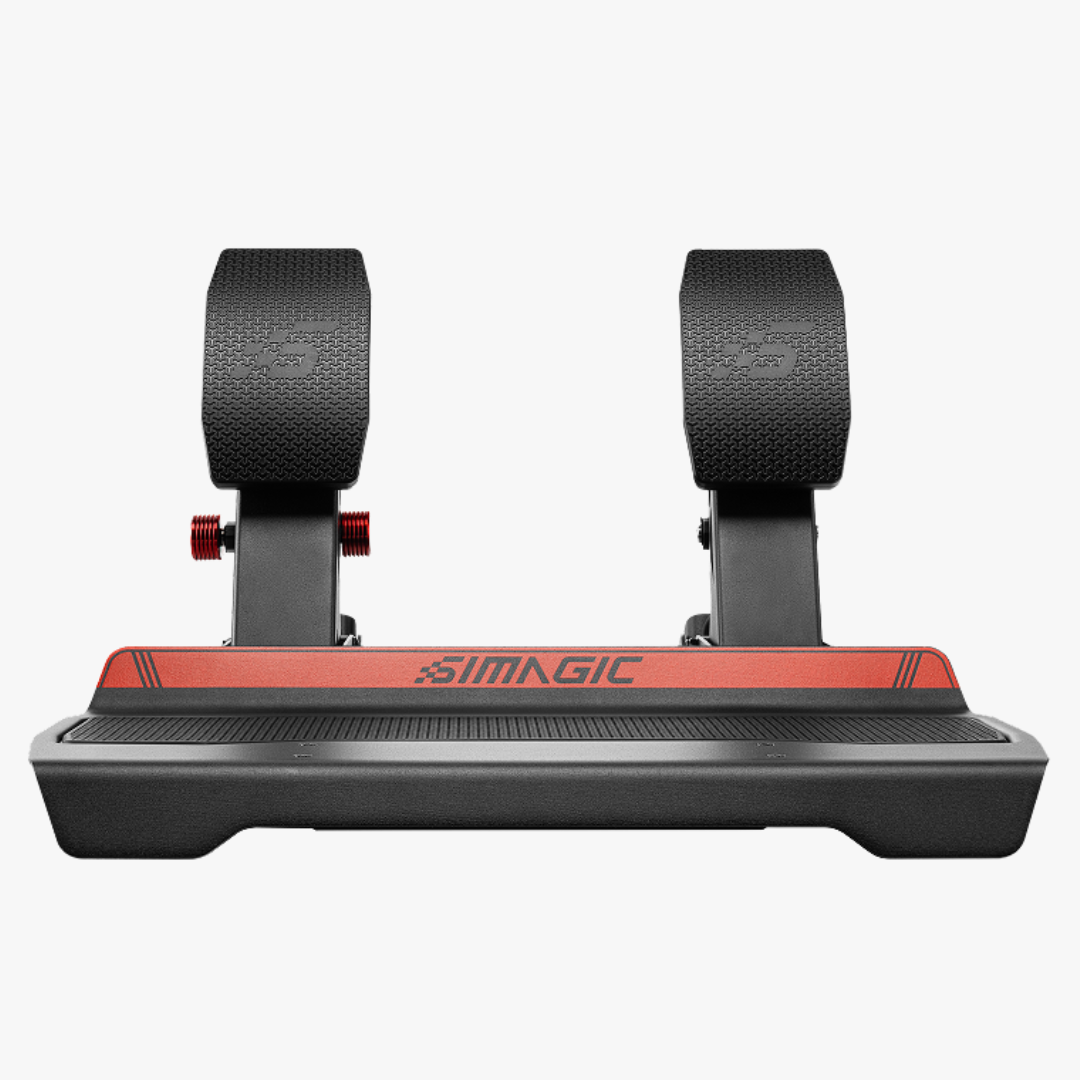

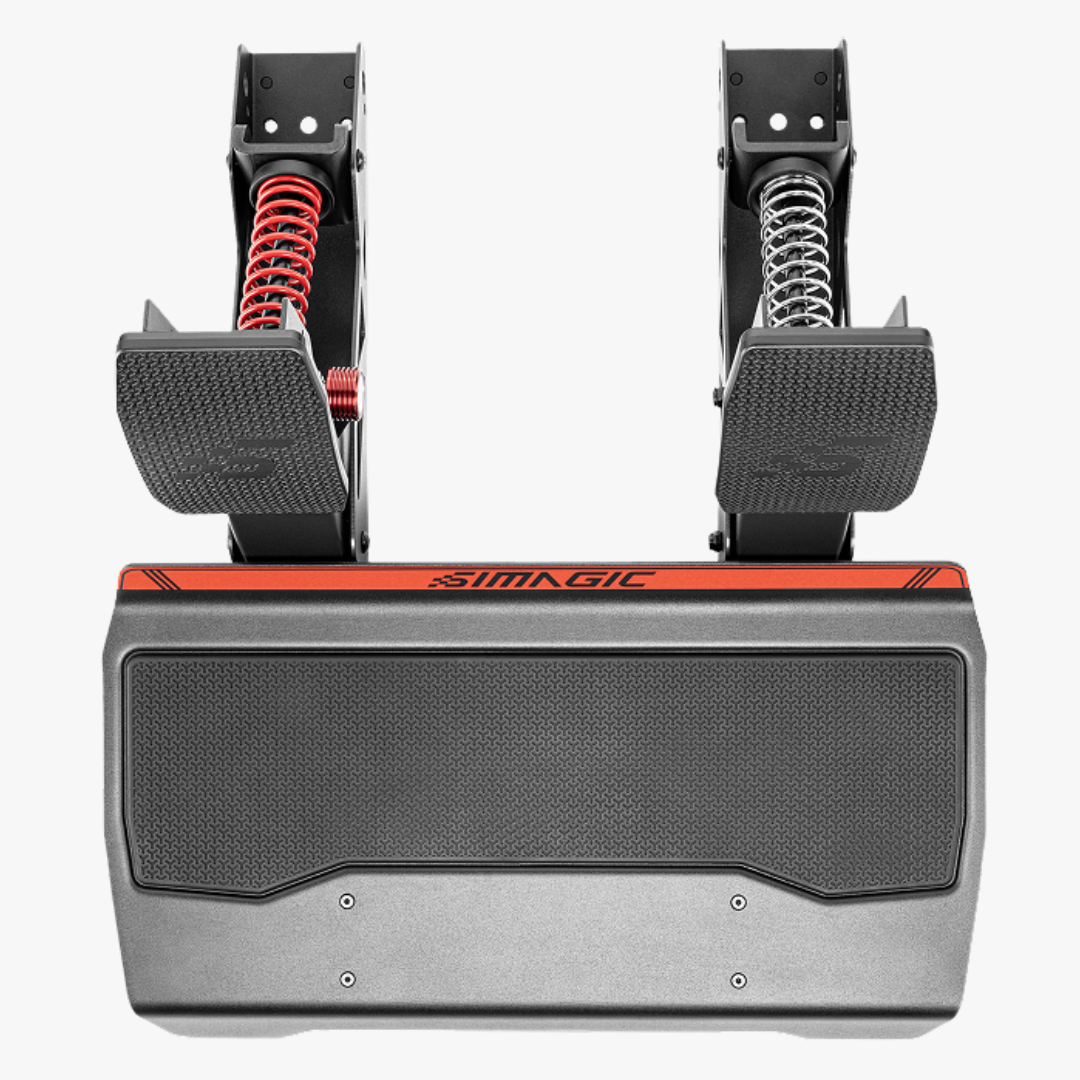

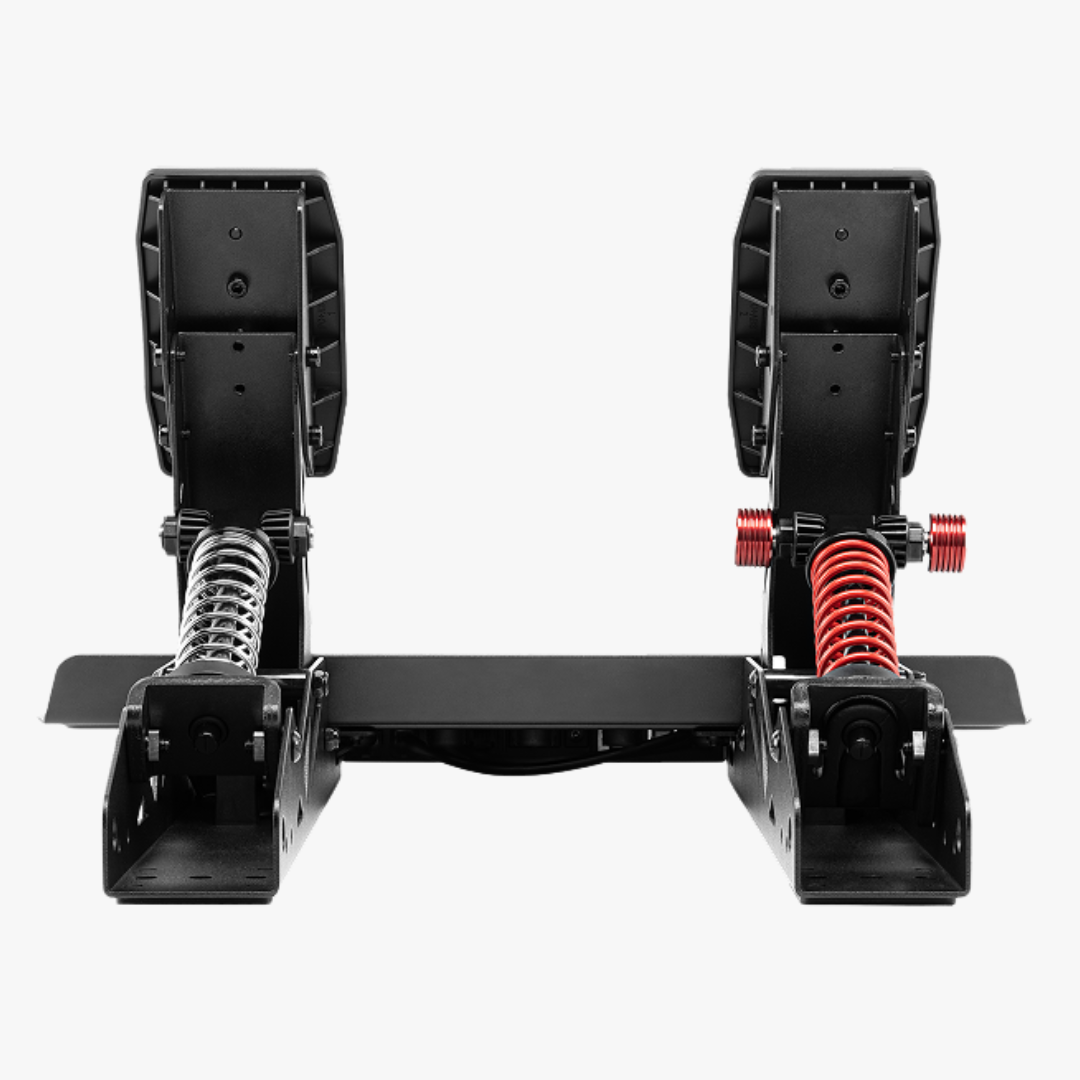

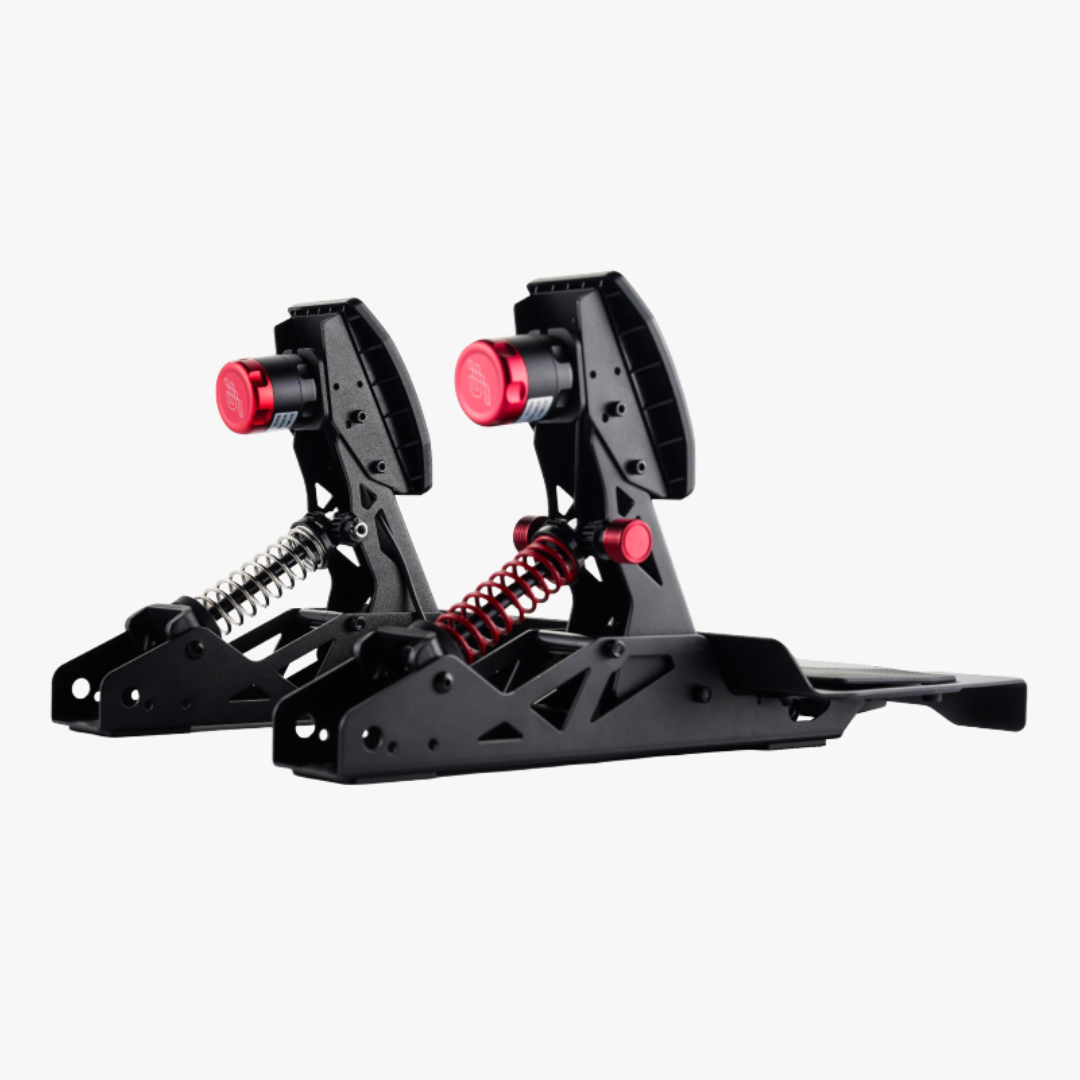

Simagic P700 2-Pedal Set

The Simagic P700 pedals deliver professional-grade braking precision and full customization in a durable all-metal design. Featuring a 150kg load cell, dual-sensor system, and advanced adaptive sensing technology, the P70 provides consistent and highly controllable braking performance for sim racers who demand accuracy and reliability.

Full-Range Adaptive Sensing Technology:
Automatically adjusts braking gain to maintain stable and controllable braking performance from light inputs to heavy stops, helping drivers achieve consistent lap times.

Dual Sensor System:
Combines Hall angle sensors with load-cell pressure sensing to accurately capture pedal inputs with high fidelity and realistic response.

150kg Load Cell Precision:
The high-capacity load cell delivers professional-level braking accuracy and consistency straight out of the box, supporting demanding racing setups.

35 Adjustable Brake Settings:
Quickly switch between multiple brake configurations such as GT4, TCR, and other racing styles with extensive tuning options.

Quick-Change Brake Setup:
Easily adjust the brake configuration from beginner-friendly to race-ready with a simple mechanical adjustment system.

All-Metal Construction:
Built from high-strength steel and engineered for durability, the P70 remains stable even under heavy braking forces and intense racing sessions.

Fully Adjustable Ergonomics:
Pedal height, spacing, angle, travel, and brake force can be adjusted to match your seating position, foot size, and preferred driving style.

Silicone Heel Plate:
Premium silicone heel plate provides a comfortable surface for barefoot driving and smooth pedal transitions.

Haptic Module Ready:
Supports optional P-HPR haptic pedal reactors to add tactile feedback and enhance immersion during braking and driving events.

Flexible Mounting Options:
The pedals can be mounted directly to a rig, aluminum profile frame, or placed on carpet using included grip pads for a stable setup.

SimPro Manager Integration:
Using SimPro Manager software, users can adjust pedal curves, deadzones, vibration effects, and other performance parameters for precise customization. :contentReference[oaicite:0]{index=0}

Technical Specifications:

• 12-bit (4096) high-accuracy sensor resolution
• Dual sensor system with Hall sensors and load cell
• 150kg load cell brake sensor
• Adjustable pedal travel, brake force, and linearity
• Adjustable pedal angle, height, and spacing
• Deadzone adjustment support
• Pedal control box included
• Q235 steel construction with injection-molded plastic and silicone components
• Dimensions: 358 × 413 × 218 mm
• Weight: 3.6 kg (without clutch) / 4.8 kg (with optional clutch)
• Electrical input: DC 5V / 2A (10W max)
• Connectivity: USB, CAN, and CAN FD compatibility
• Compatible with PC and SIMAGIC wheelbases
• Optional clutch pedal (C-P700) available for 3-pedal setup
• Optional P-HPR haptic pedal reactors supported
